Premium Category 5e & Category 6 Networking Cables Manufactured by Cable Master Electric Wire & Cable
Cable Master is a manufacturer of high quality Cat5e & Cat6 copper data networking cable. As the official UK distributor, KSM Ltd are committed to continuously supplying state of the art cables to satisfy the increasing performance demand of communication networks for today and tomorrow. The Hyper-Data series, recognized as Cable Master’s highest quality cable, embodies this commitment for excellent and reliable products.
Hyper-Data 1000 — Cat5e
Cable Master Hyper-Data 1000 Cat5e shielded and unshielded flexible stranded cables for transmission performance up to 100MHz and Gigabit Ethernet.
These premium quality cables are available from UK stock in a broad range of colours and jacket types. They hold UL approval and where applicable comply with ANSI/TIA and ISO/IEC standards.
Technical Specifications
Conductor
- Unshielded
- 24AWG Stranded Copper
- Shielded
- 26AWG Stranded Copper
Insulation
HDPE (CMI-75E)
Shield
- Unshielded
- N/A
- Shielded
- Tinned Copper Drain Wire & Aluminium-Mylar Tape
Colour Code
- White/Blue & Blue
- White/Orange & Orange
- White/Green & Green
- White/Brown & Brown
Jacket
- PVC Compound
- 75°C (CMI-80S)
- LSZH Compound
- 75°C (2095H)
Official Cable Approvals
- UKCA
- CPR Reaction to Fire Class Eca
- UL Approved File Number E151955
- Unscreened Cables Independently Tested & Approved by ETL
Documents & Guides
Unshielded
Shielded
Declaration of Performance
Product Availability (UK Stock)

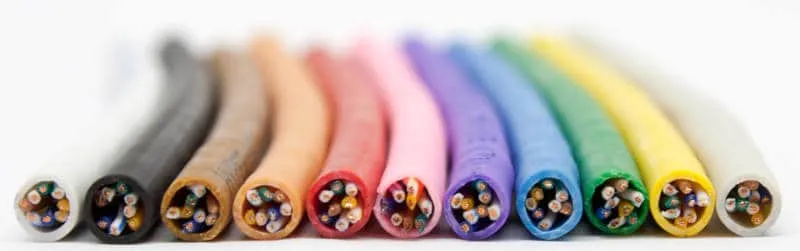

PVC Colours
- Unshielded
- Black, Blue, Brown, Green, Grey, Orange, Pink, Red, Violet, White, Yellow
- Shielded
- Black, Blue, Green, Grey, Orange, Pink, Red, Violet, White, Yellow
LSZH Colours
- Unshielded
- Black, Blue, Green, Grey, Red, Yellow, Violet.
- Shielded
- Black, Blue, Green, Grey, Red, Yellow, Violet
Hyper-Data 2000 — Cat6
The Hyper-Data 2000 series is the optimum Cat6 range from Cable Master. Available as both shielded and unshielded versions the cable is designed for Gigabit and 10GBASE-T performance up to 250MHz.
Each cable is batch traceable, metre marked for convenience and is supplied with a Low Smoke Zero Halogen sheath approved to UL CMX-LSHF and IEC 60332-1-2 as standard.
Technical Specifications
Conductor
- Unshielded
- 24AWG Stranded Bare Copper
- Shielded
- 26AWG Stranded Bare Copper
Insulation
HDPE (CMI-75E)
Shield
- Unshielded
- N/A
- Shielded
- Tinned Copper Drain Wire & Aluminium-Mylar Tape
Colour Code
- White/Blue & Blue
- White/Orange & Orange
- White/Green & Green
- White/Brown & Brown
Jacket
- LSZH Compound
- 75°C (2095H)
Official Cable Approvals
- UKCA
- CPR Reaction to Fire Class Eca
- UL Approved File Number E151955
- Unscreened Cables Independently Tested & Approved by ETL
Documents & Guides
Unshielded
Shielded
Declaration of Performance
Product Availability (UK Stock)

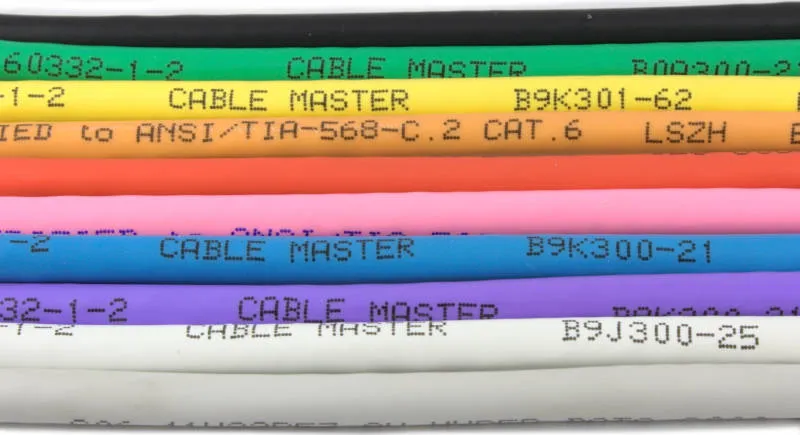

LSZH Colours
- Unshielded
- Black, Blue, Green, Grey, Orange, Pink, Red, Violet, White, Yellow
- Shielded
- Black, Blue, Green, Grey, Red, Yellow, Violet
Cable Assemblies

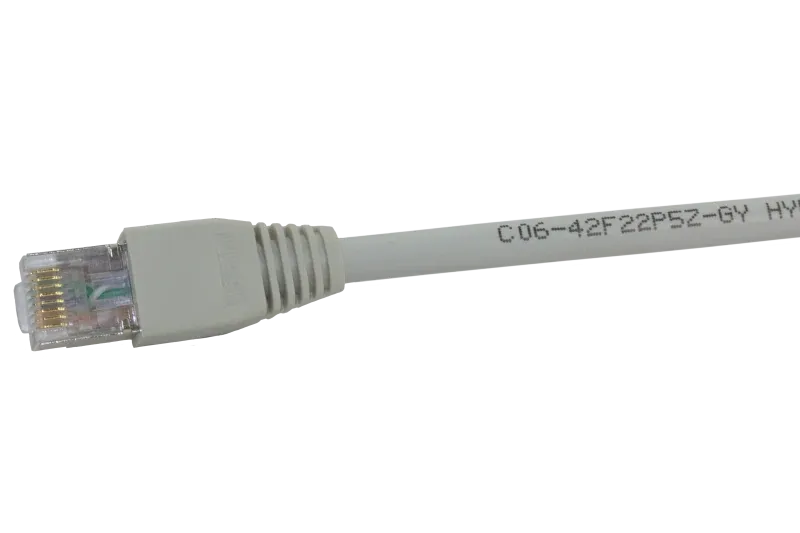

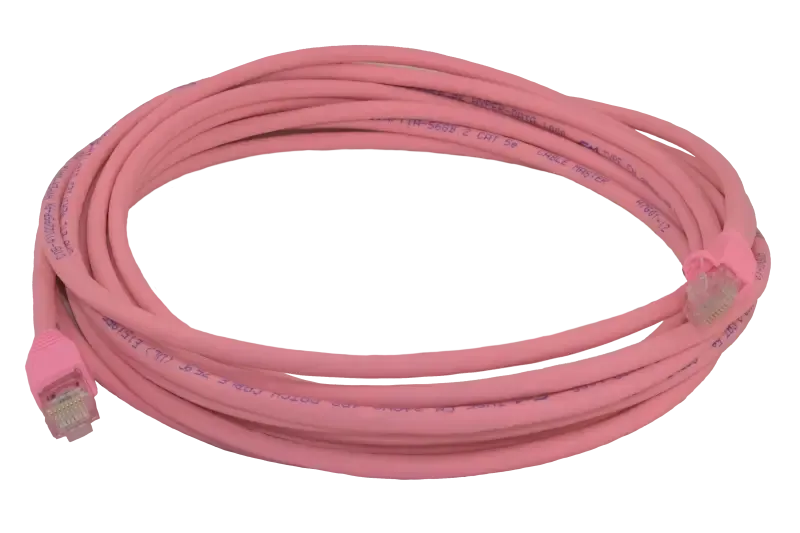

Cable Master patch leads are custom made in the UK to your exact specifications.

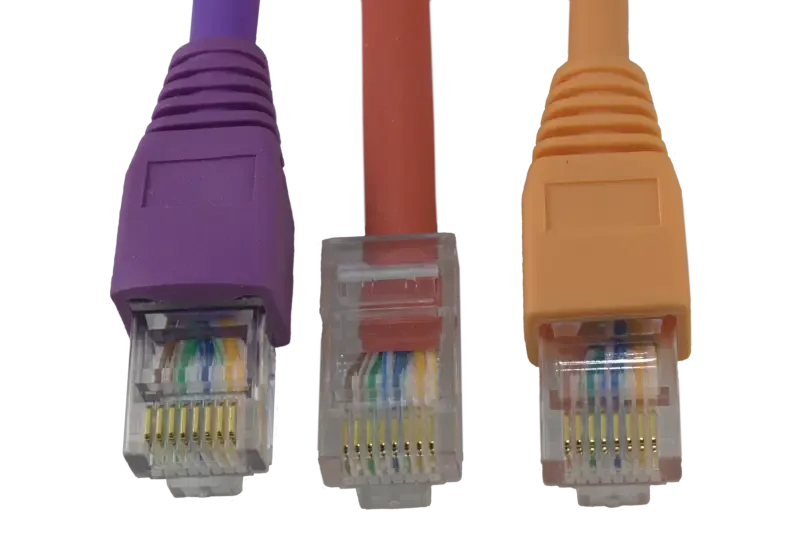

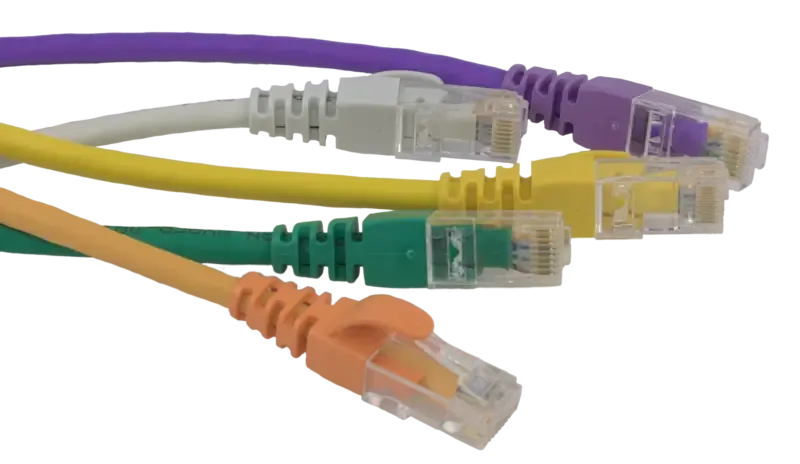

We manufacture Cat5e and Cat6 stranded data networking cables and use high quality connectors manufactured by Coble. Our patch leads can be supplied finished with coloured boots to provide strain relief and can be flush or non-flush style.
Any length, any colour, any configuration. Leads as standard will be wired to TIA-568B and fully continuity tested. The final length of an assembled cable is taken from the tip of each connector.
Have an unusual request? Contact us to see how we can help.
Additional Cable Master Products
Cable Master has been a leading manufacturer of data networking cables since being established in 1983. They offer bespoke LAN cable solutions from Cat5e up to Cat7, all manufactured to the highest quality standards and backed by decades of industry experience. A team of dedicated, expert staff work to provide a complete and comprehensive service delivering outstanding communication products and turnkey deployments including design, installation, maintenance and support.
Innovation and refinement are core principles of the research and development that goes on daily at the production facility, resulting in the successful introduction of creative ranges such as ultra slim patch cords, ribbon style leads and coiled assemblies. The ever evolving performance requirements of clients demands continuous investment into the field of networking accessories and state-of-the-art process equipment.
The e-catalogue offers a wide range of products, including Cat5e, Cat6, Cat6A and Cat7 LAN cables and much more. Cable Master is committed to supplying the highest standard of networking services for businesses and organizations of all sizes. Utilizing advanced manufacturing techniques their products are ensured to provide consistent and reliable performance. Discover the perfect solution for your networking needs by exploring their portfolio today.
View the Cable Master E-Catalog here. Opens in new tab/window
